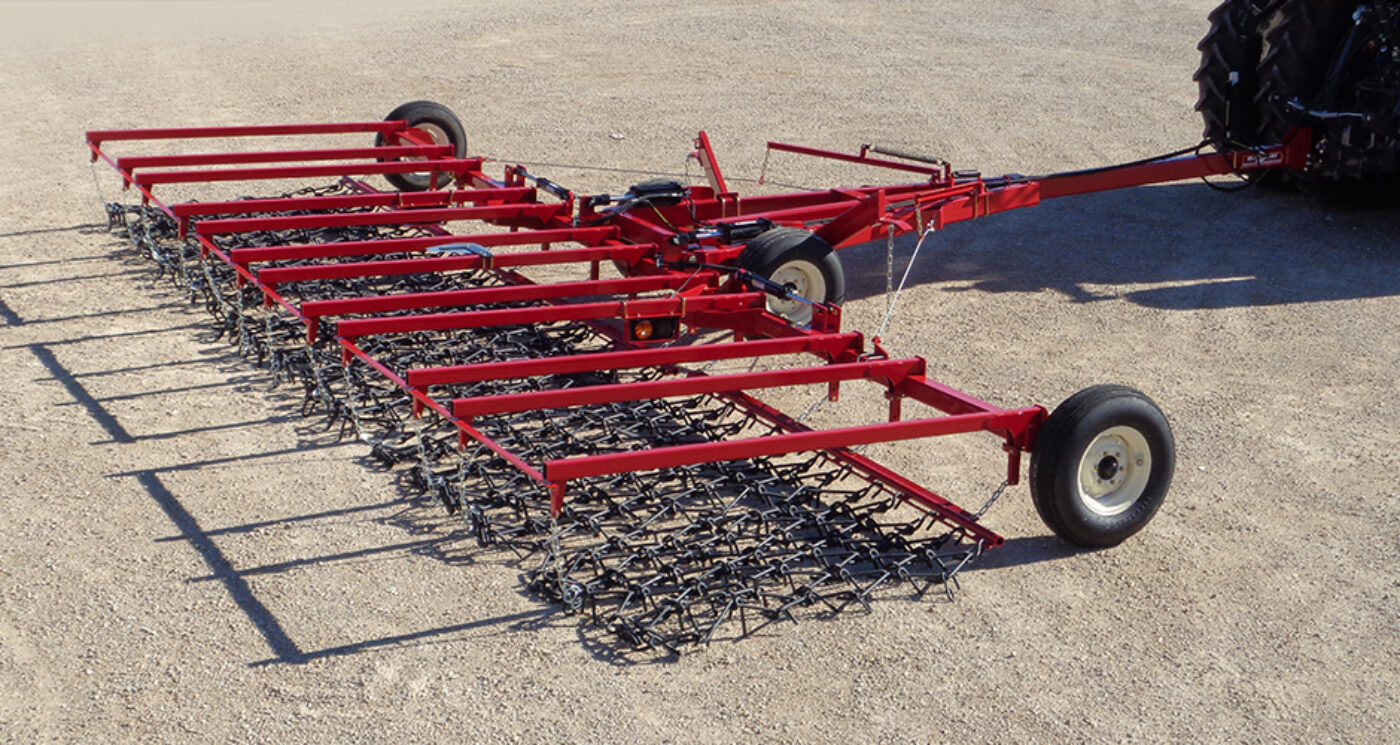

Universal Chain Harrow Carts

McFarlane Chain Harrows come in working widths all the way up to 40' to cover more acres quickly. We've also incorporated a long telescoping hitch to make turning on the ends much easier.

Our 10 series models include hydraulic lift, manual fold to get you from field to field without hardly any effort.

Our 32' through 36' models feature a double-trussed square tubular center and wing frame along with a high-strength pull tube for an even pull across each acre.

All units come with a universal pull tubes. Chain harrow sections are sold separately.

Specifications

Model Cutting Width Approx. Weight
HD-16-U 16'-0" 1,322 lbs.
HD-18-U 18'-0" 1,349 lbs.
HD-20-U 20'-0" 1375 lbs.
HD-24-U 24'-0" 1,562 lbs.
HD-26-U 26'-0" 1,586 lbs.
HD-28-U 28'-0" 1,610 lbs.
HD-30-U 30'-0" 1,646 lbs.
HD-32-U 32'-0" 2,173 lbs.
HD-34-U 34'-0" 2,249 lbs.
HD-36-U 36'-0" 2,280 lbs.
HD-116-U 16'-0" 2,225 lbs.
HD-118-U 18'-0" 2,256 lbs.
HD-120-U 20'-0" 2,289 lbs.
HD-124-U 24'-0" 2,529 lbs.
HD-126-U 26'-0" 2,560 lbs.
HD-128-U 28'-0" 2,590 lbs.
HD-130-U 30'-0" 2,622 lbs.
HD-132-U 32'-0" 3,316 lbs.
HD-134-U 34'-0" 3,365 lbs.
HD-136-U 36'-0" 3,399 lbs.
HD-140-U 40'-0" 4,006 lbs.
