HDL-10

The 10 Series harrows from McFarlane can be used independently or easily pulled behind a field cultivator or disk. Hydraulic lifts have been integrated into each unit to make working with your primary tillage tool even easier.

Gallery

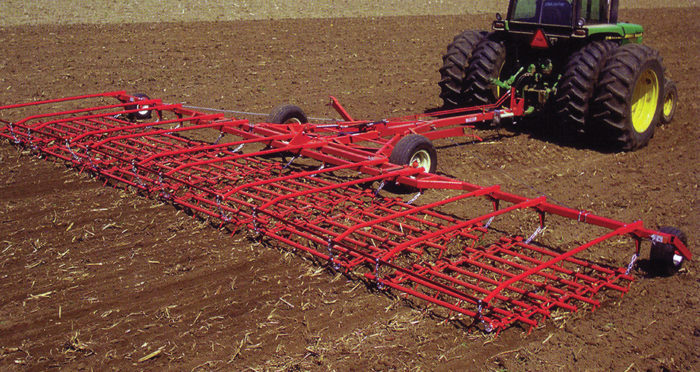

Harrows hdl 10 940x500

Features and Benefits

  • 8 bars for superior leveling
  • Fully flexible harrow sections
  • Dual positive pitch settings —' 50° or reverse harrow pull for 38°
  • Easy manual forward folding wings for conversion to transport
  • Long hitch for tighter turning
  • Scatter residue and provide
  • 4 + 4 options are also available

Specifications

Model Cutting Width Approx. Weight
HDL-16-8 16'-7" 1,845 lbs.
HDL-18-8 18'-1" 1,897 lbs.
HDL-20-8 19'-6" 1,949 lbs.
HDL-22-8 22'-7" 2,035 lbs.
HDL-24-8 24'-1" 2,328 lbs.
HDL-26-8 25'-8" 2,380 lbs.
HDL-28-8 28'-8" 2,466 lbs.
HDL-30-8 30'-1" 2,518 lbs.
HDL-32-8* 31'-7" 3,024 lbs.
HDL-34-8* 34'-7" 3,160 lbs.
HDL-36-8* 36'-2" 3,217 lbs.
