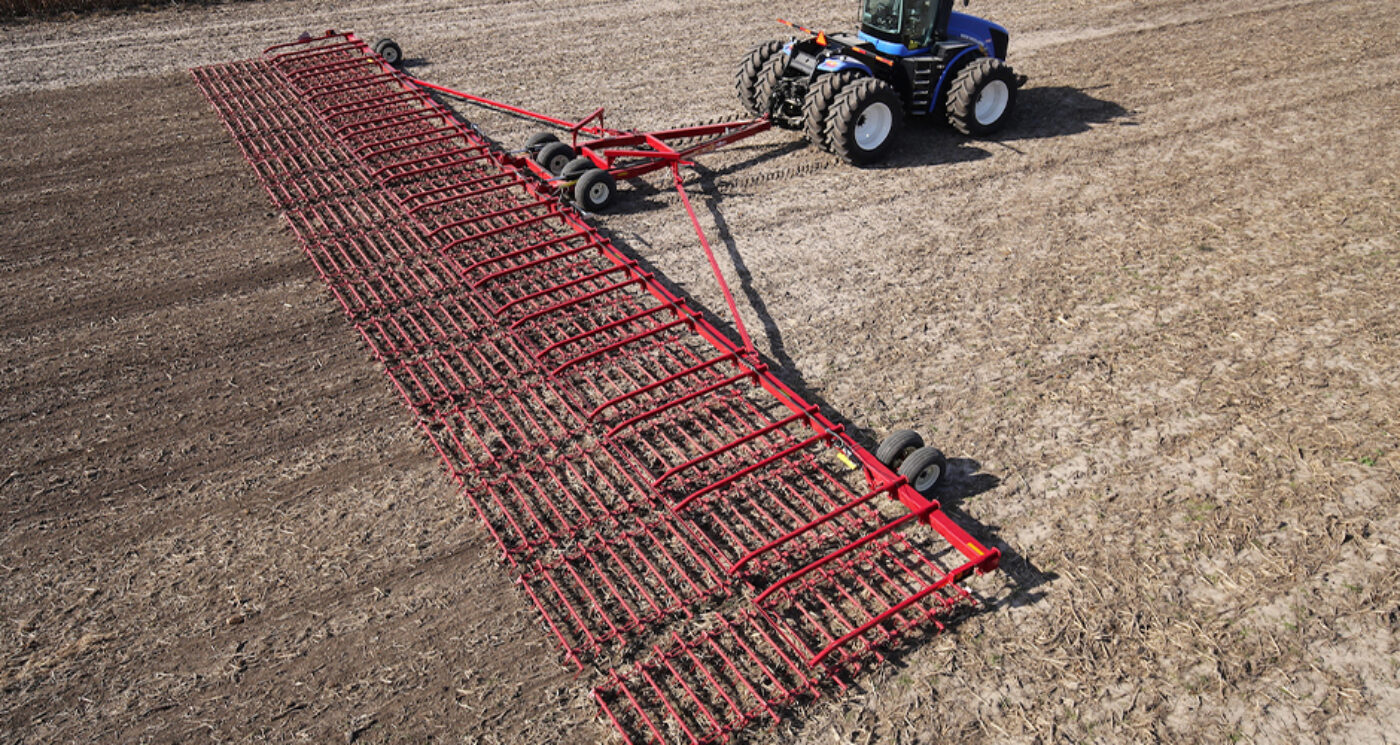

Twice the Coverage, Twice the Performance

The 16-Bar Rear Fold gives you double coverage, and double performance. With 2-to-3 times the normal number of bars and spikes, McFarlane’s 16-Bar Rear Fold thoroughly breaks and stirs the soil, significantly reducing field preparation time.

Depending on soil conditions, some operators use the McFarlane 16-Bar Rear Fold alone for spring field preparation. The 16-Bar Rear Fold Harrow is the ideal tool for shallow chemical incorporation. It provides superior coverage taking chemicals to the 1"-to-2" depth recommended by many manufacturers. The result is better incorporation and better performance from your herbicides.

Features and Benefits

  • Long hitch for easy turning
  • Heavy-duty 1 piece frame fabricated out of rectangular tubular steel
  • Excellent for leveling ridges from fall tillage
  • Ideal for managing small grain straw
  • Good for broadcast seeding
  • Complete with 16-Bar harrow sections for superior leveling
  • Fully flexible for handling heavy residue
  • 20 Teeth per foot for excellent coverage
  • High-carbon replaceable diamond-shaped teeth
  • Two positive pitch teeth settings -50º or reverse harrow pull at 38º


Model Cutting Width Approx. Weight Transport Width
WDL-2160-16 60'-4" 12,174 lbs. 15'-2"
WDL-2170-16 69'-5" 13,632 lbs. 15'-2"
WDL-2180-16 80'-0" 15,170 lbs. 15'-2"
WDL-2190-16 90'-0" 16,400 lbs. 15'-2"
